• Glass, solar absorbing, tinted
• Grille guard screen, insect protection (mounted behind grille)
• Antenna, fixed mast
• Spare tire delete (STD)
• Wheel, spare delete
• Door handles, Black

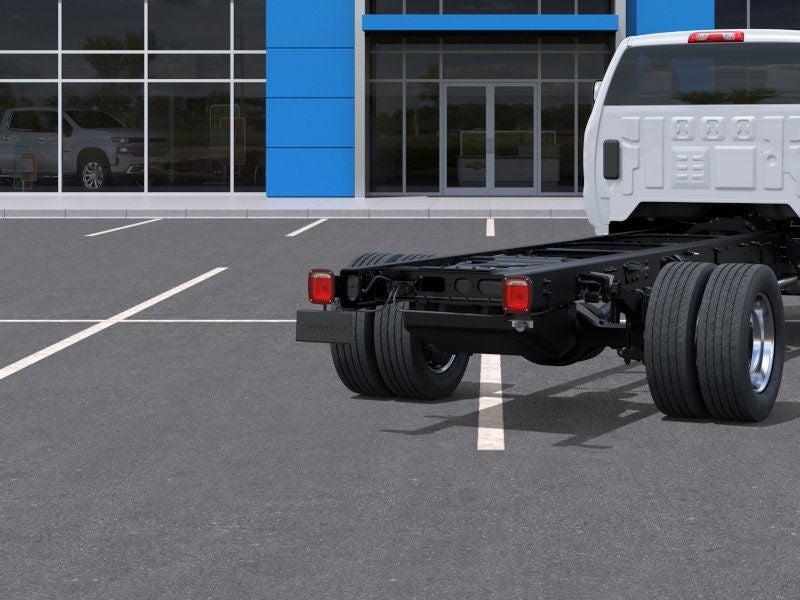

• Lamps, rear, stop/turn/backup (1-piece assembly) with license plate light
• Front fender extension, painted body color
• Lamps, cargo area, cab mounted with switch on center switch bank
• Assist steps
• Lamps, Smoked Amber roof marker

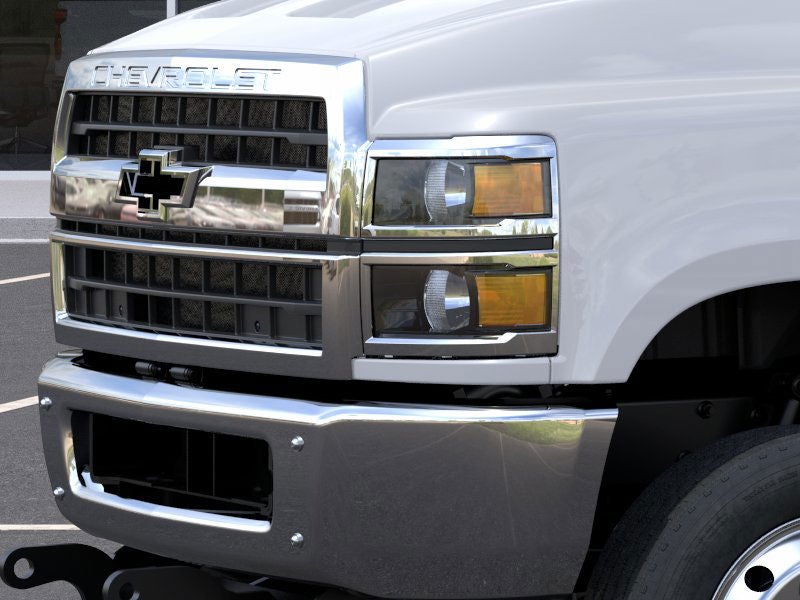

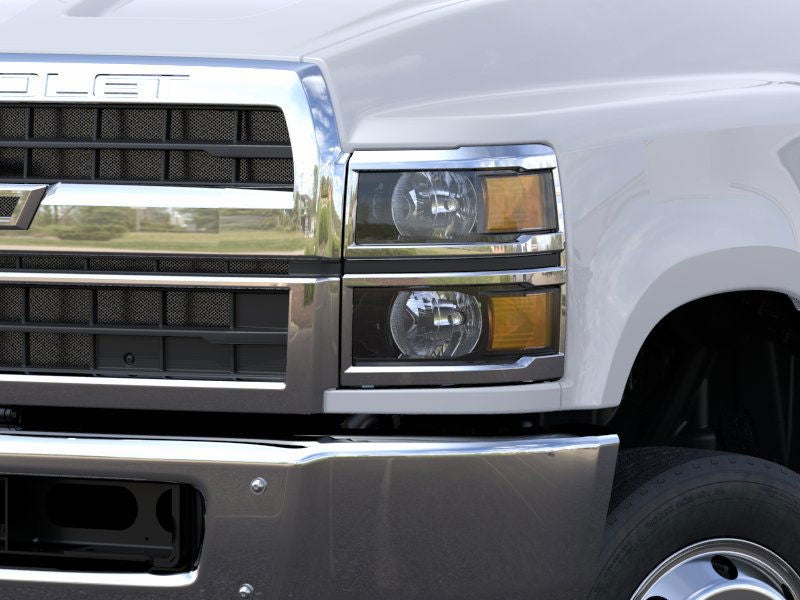

• Headlamps, halogen projector-beam
• Paint, solid
• Grille, chrome
• Tires, front 225/70R19.5H traction blackwall Continental Max Axle Load: 8,000 lbs.
• Bumper, front chrome
• Provision for cab roof-mounted lamp/beacon provides an overhead console mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp
• Tires, rear 225/70R19.5H traction blackwall Continental Max Axle Load: 16,000 lbs.
• Auxiliary harness, 3' for headlamps and turn signals

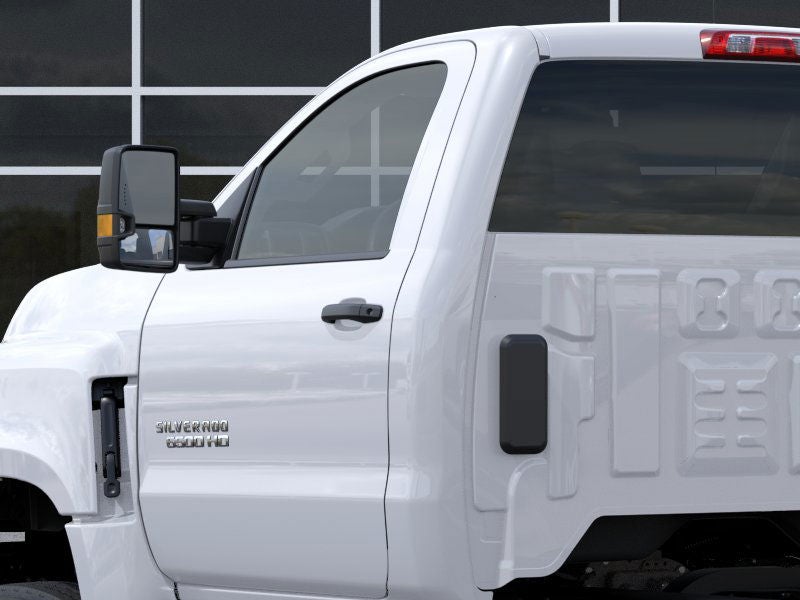

• Mirrors, outside heated power-adjustable vertical trailering, upper glass, manual-folding and extending, black. Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp
• Summit White

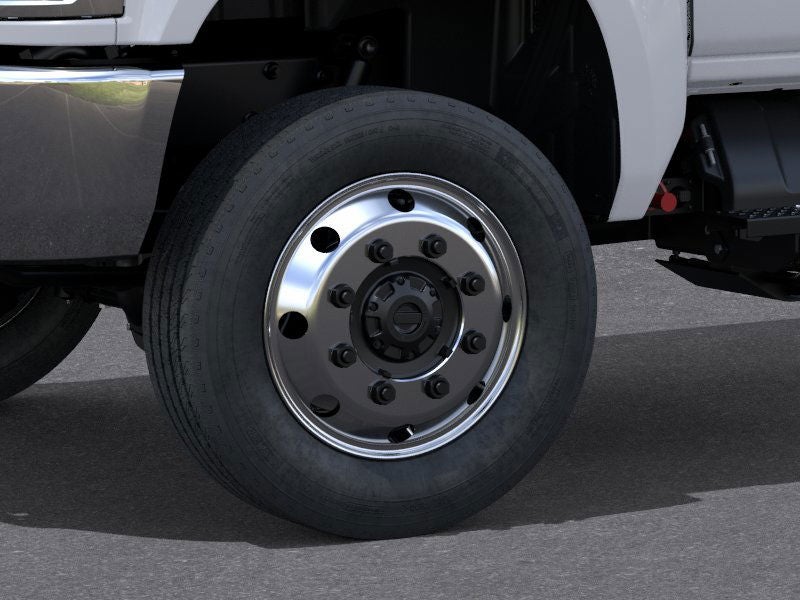

• Wheels, 19.5" x 6.75", 4-aluminum wheels, 8-holes, hub piloted Dura-Bright finish is on the outside of the wheel
• License plate kit, front
• Spare tire delete (STD)

• Visors, driver and front passenger, vinyl
• Driver Information Center, 3.5" diagonal monochromatic display provides warning messages and basic vehicle information
• Seat trim, Vinyl
• Speedometer, miles/kilometers
• Interior trim, Jet Black/Dark Ash (Required and only available with (H2Q/H2R) Dark Ash seats with Jet Black interior accents.)
• Cruise control, steering wheel-mounted
• Door locks, power
• Air conditioning, single-zone
• Assist handle, front passenger and driver on A-pillars
• Floor covering, Graphite-colored rubberized-vinyl
• Steering wheel, urethane
• Upfitter switch kit provides up to 4-30 amp circuits to facilitate installation of aftermarket electrical accessories located on the instrument panel
• Steering column, manual Tilt-Wheel
• Mirror, inside rearview manual day/night
• Seat Belt, Black
• Dark Ash seats with Jet Black interior accents, Vinyl seat trim
• Back-up alarm calibration This calibration will allow installation of an aftermarket back-up alarm by disabling rear perimeter lighting
• Seats, front 40/20/40 split-bench, cloth or vinyl 3-passenger. Includes driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Also includes manually adjustable driver lumbar and storage pockets. Includes (AG1) 10-way power seat.)
• Seat adjuster, driver 10-way power
• Windows, power with driver express up and down and express down on all other windows

• Emissions, 50 state certification
• Front suspension, 7,500 lbs. (3,402 kg) multi-leaf, includes shock absorbers
• Brakes, hydraulic, heavy duty Bosch/Meritor/Wabco system with 4-channel (ABS) (Includes (J69) driveline park brake.)
• Axle, Open rear axle, non-locking rear
• Capped Fuel Fill
• Steering, power (Bosch S2 8014 Plus)
• Fuel tank, rear only, 40 gallon mounted between frame side rails and behind rear axle
• Emissions, USA 50 State certified
• Incomplete vehicle
• Fuel, diesel B20
• Axle lubricant, rear, synthetic oil EmGard FE -75W-90
• Rear axle, 4.30 ratio Max road speed: 79 MPH
• Trailering provisions, trailering wire harness only, trailer combined (Stop/Tail/Turn) connection socket and harness mounted at rear of frame.
• Batteries, heavy-duty dual 1100 cold-cranking amps includes battery box mounted to left side under cab
• Front axle, 7,500 lbs, Dana Spicer 60-256, single-reduction, front driving
• Axle lubricant, front, synthetic oil EmGard FE-75W-90
• Exhaust brake
• Four wheel drive
• Trailer brake controller, integrated
• Additional fuel, 5 gallons
• Rear axle, 15,500 lb. (7,031 kg)
• DPF, diesel particulate filter, manual regeneration customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown
• Axle to End of Frame, 63"
• Rear suspension, 15,500 lbs. (7,031 kg) multi-leaf, vari-rate
• Axle, limited slip, Dana Spicer Truetrac, torque proportioning limited slip
• Wheelbase, 189" (480.1 cm), 108" CA
• 30,000 lbs. GCWR (13,607 kg)
• Rear axle, 4.30 ratio Max road speed: 79 MPH
• GVWR, 23,000 lbs. (10,433 kg)
• 6500 HD Series
• Exhaust system, straight, terminates ahead of rear wheels
• Alternator, 220 amps

• Snow Plow Prep Package includes (UNL) auxiliary harness for headlamps and turn signals, (KW5) 220-amp alternator, forward lamp wiring harness and (TRW) provision for cab roof mounted lamp/beacon
• WT Preferred Equipment Group includes standard equipment

• Daytime Running Lamps, with automatic exterior lamp control

• Horn, Trumpet Style, single-note
• Airbags, Single-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front outboard seating positions; Includes airbag deactivation switch for front outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Rear Vision Camera, display integrated into Radio (Shipped loose in cab for upfitter installation.)
• OnStar, delete
• Airbag deactivation switch, frontal passenger-side (Included and only available with (AY0) airbags.)
• Backup alarm (Includes (SFW) SEO Calibration for backup alarm.

• StabiliTrak, Electronic Stability Control System with Traction Control includes Electronic Trailer Sway Control and Hill Start Assist
• Brake, parking, driveline park brake system
• Traction control

Snow Plow Prep Package

• DriveType
• DriveType: Four Wheel Drive
• Fuel Economy
• City: 0
• Hwy: 0
• Combined: 0
• Fuel System
• Fuel System: Direct Injection
• Fuel Tank Capacity
• Fuel Tank Capacity: 40 gal
• Fuel Type
• Fuel Type: Diesel Fuel
• Horse Power
• Horse Power: 350
• Rear Wheel
• Rear Wheel: Dual
• Trailering Capacity
• Trailering Capacity: 0
